Information

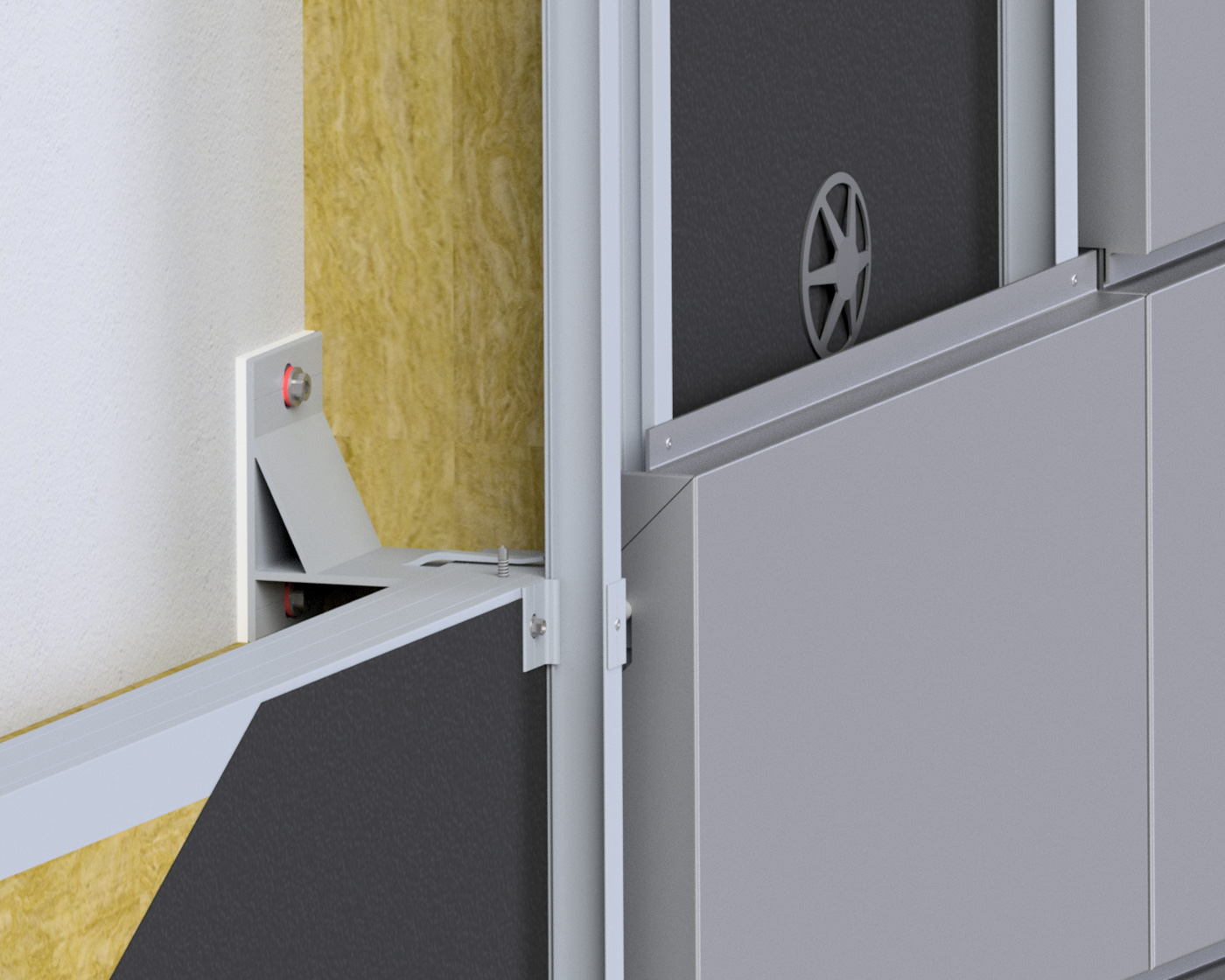

The F2.50 system comprises patented F2 wall brackets, horizontal L or T profiles, vertical Omega support profiles and bolts with fastening clips. Metal coffered facades or aluminium composite panels are hooked into the bolts and screwed in place using the fastening clips.
This system is ideal for fastening of wind foils directly onto the horizontal profiles.
Wall brackets and horizontal and vertical profiles are screwed together and fixed and sliding connections guarantee free expansion. Clamping springs are used to arrest the profiles in position with no need for additional tools. This will save costs and assembly time.
The wall brackets are available in lengths from 35 mm to 235 mm. Systems of the same length will bridge up to 40 mm of unevenness. An optional insulator will reduce thermal bridging.
Components
- Bracket F2
- Insulator pad
- L-profile
- Cassette-profile
- Plastic frame anchor with screw
- Self drilling screw
- Bolt and clip
- Rivet
Engineering Services
- Offer
- Static calculation
- Assembly planning
- Project management
- U-Value calculation
- Optimized cuts and special parts
